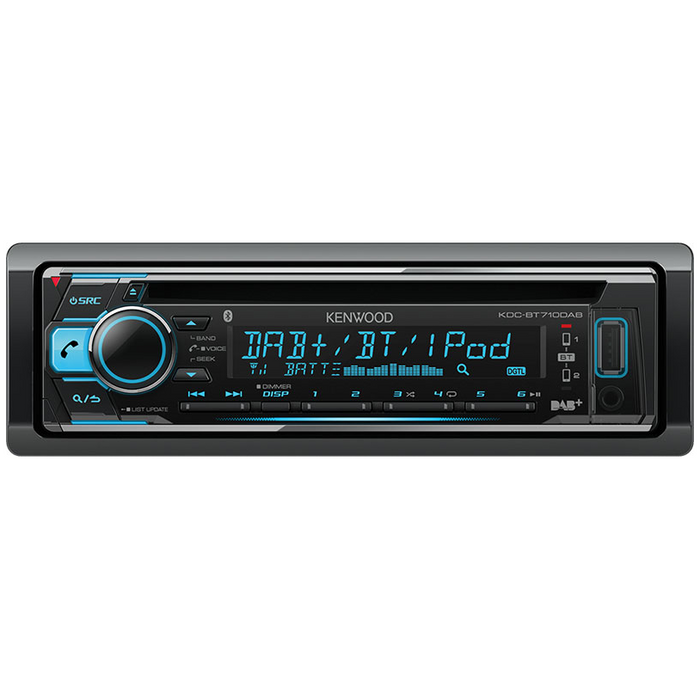

KENWOOD KDC-BT710DAB -

Specifications

Key Features

• iPhone / Android Music Playback
• Bluetooth handsfree & Audio Streaming Built-in
• Kenwood Remote App Remote Ready
• 13 Band parametric equalizer
• Built-in DSP with Time Aligment
• DAB+ Tuner Built-in
• flac playback (48kHz - 24bit)
• 13 Digits 2 Line Vertical Alignment LCD
• Front USB & AUX input
• USB 1,5A Quick Charge for Smartphone
• General Features
• DIN Size: 1 DIN
• Detachable Faceplate
• Key Illumination: Variable LED
• Rotary Encoder & Control Knob
• Accent key: Bluetooth
• Back-up Memory: Only Tuner Presets
• Touch Sensor Tone
• Digital Clock (24H)
• All-off Select (20/40/60 minutes)
• ISO connector, New Mitsumi to ISO cable
• Bluetooth unit built-in
• USB interface x 1
• Firmware upgreadable

Display Features

• Display Type: Liquid Crystal Display (LCD)
• Display Layout: 13Seg. X 13 Digit / 1,5 line
• Vertical Aligment Liquid Crystal Display
• Display Illumination: Variable by RGB LED
• Dimmer Control: Manual / Set by Timer
• Brightness control: 0 - 31 steps
• Demo Mode
• Menu text in selectable language: English, Spanish, Russian
• TAG Language Display: English, Spanish, Russian & Greek

Cosmetics features

• Front/edge: Black Injection
• Volume & operation knob or wheel: Chrome-finished
• Escutcheon finish: Black Injection
• Triangle Illumination: Red
• Key illumination: Variable by RGB LED
• Display illumination: Variable by RGB LED
• Brightness Control (Key): 0 - 31 step
• Brightness Control (Display): 0 - 31 step
• Dimmer Control (Key): Manual / Set by Timer
• Dimmer Control (Display): Manual / Set by Timer
• Lightning bar

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM): 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM): 6 presets
• Tuning mode:
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)
• PTY News: Off/0/10/20/.../80/90min
• CE DAB tuner features
• DAB+ tuner built-in
• Intelligent seek
• Ensemble seek
• Tuning mode / Seek mode: Auto1/Auto2/Manual
• Service preset: 6 ch * 3 bank presets,
• Auto service memory (AME)
• Auto Ensemble Memory (AME)
• Service list by alphabet order
• Preset list
• Alphabet Search
• Related service
• Audio interrupt standby by PTY
• Audio interrupt standby by announcement
• DAB-RDS integrated TI
• Traffic Information
• DAB-AF (Alternative frequency)
• DAB priority
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DLS (Dynamic Label)
• DRC (Dynamic Range Control)
• DMB (Digital Multimedia Broadcasting) support
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Announcement Switching (ASW) Select
• Antenna power supply on/off switch
• DAB antenna included

CE_Playable Audio file

• AAC (*.m4a) files are playable: CD/USB
• MP3 files are playable: CD/USB
• WMA (.wma) files are playable: CD/USB
• WAV (.wav) files are playable: USB
• FLAC files are playable: USB

CD Features

• CD-R/RW Compatible
• MP3, WMA & AAC playback
• CD Text with special Character Support: English, Spanish, Russian & Greek
• D.A.C. processing: 24 bit
• 0 bit Mute
• Random Function
• Repeat Function
• Scan Function

USB Features

• USB terminal, Front USB 2.0 (Full Speed)
• Android USB Mass Storage Class (MSC)
• Android Open Accessory support (AOA): V 2.0
• MP3, WMA, AAC, WAV, FLAC playback
• Repeat / Random Play
• Direct search
• Time code display
• 1,5A Charge Capability for Smartphone (BC 1.2).

iPod Features

• Made for iPod & iPhone *
• USB Direct Control: with optiona cable KCA-iP102 (40pin) or iP103 (Lightning connector)
• Alphabet search
• Skip search
• Direct Search
• iPod EQ Mode
• Control by hand
• App & iPod control mode
• iPod Accessory Protocol (iAP): over Bluetooth
• iAP over Bluetooth
• Reverse browsing
• Voice Control using Siri.
• Works with iPod Touch *: 5th & 6th generation
• Works with iPod Nano *: 7th** generation
• Works with iPhone *: 4S/5/5S/5C/6/6Plus/6S/6S Plus/SE
• Battery charge + power control

* Always update to latest Apple firmware:
** Apple Lightning - 30 pin adapter required:
*** In case of Apple Unit with Lightning Connector only Audio playback

Audio Features

• Maximum Output Power: 50W x 4
• MOSFET Power IC
• Auxiliary input: Front Mini-jack
• Pre-out: 2 RCA
• Pre-out Output Level: 2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj.
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Tone Control / Easy EQ: 13 band, 8 presets
• Balance/Fader Control
• Loudness Control: Off/Low/High
• Bass Boost Circuit: Off/+1/+2/+3/+4/+5
• Parametric Equalizer + Presets: 13-Bands Parametric Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low- & High-pass Filter
• Kenwood Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ
• Extra EQ

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP: 5 phones
• Hands Free Profile (HPF): V1.6
• 2 phones fulltime connection
• Advanced Audio Distribution Profile (A2DP), (SBC/AAC)
• KENWOOD Music Mix Support
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP), V1.5
• Wireless Music Browsing (AVRCP 1.5)
• iPhone & Android automatic pairing via USB
• Voice Dialing / Siri Eyes Free
• Catchphone / Call Waiting
• Private mode
• Noise Canceller
• Echo Canceller
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Compatibility check mode
• High-quality noise canceling microphone:
• Bluetooth firmware upgradeable

* depends on phone model/make: & Kenwood unit

Connectivity

• iPod Digital Connection (1 Wire), with optional KCA-ip102
• Front USB & AUX Input
• OEM Wired Remote Control ready
• DC-Cord: NEW Mitsumi to ISO
• Power Control (P.CON) wire
• FM Antenna Input
• DAB Aerial input
• External microphone input (mini-jack)

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity: 0.71μV/75ohm (S/N 26dB)
• FM Quieting Sensitivity: 2μV/75ohm (S/N 46dB)
• FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono): 64dB
• FM Stereo Separation (1kHz): 40dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity: 28.2μV
• LW range: 153kHz - 279kHz (9kHz step)
• LW Usable Sensitivity: 50μV

DAB Tuner specifications

• L Band - Frequency range: 1452.96MHz - 1490.624MHz
• Band III - Frequency range: 174.928 MHz - 239.2MHz
• Mode: I, II, III, IV
• Sensitivity: - 100dBm
• Signal to noise ratio: 80dB
• DAB Aerial Connector Type: SMB
• Output Voltage: 14.4V (11V to 16V allowable)
• Maximum Current: < 100 mA

Codec Specs

• MP3 Format: MPEG 1/2 Audio Layer 3-Files
• WMA Format: Compliant with Windows Media Audio
• AAC Format: AAC-LC “.aac” files only
• WAV Format: RIFF waveform Audio Format (only for LinearPCM)
• FLAC Format: FLAC files (up to 48kHz/24bit)

CD Specifications

• Laser Diode: GaAIAs
• Digital Filter(D/A): 8 Times Over Sampling
• Digital/Analogue Converter: 24 Bit
• Spindle Speed: 500 ~ 200rpm (CLV: 1 times)
• Wow & Flutter: Below Measurable Limit
• Frequency Response: 20Hz ~ 20kHz (±1dB)
• Total Harmonic Distortion: 0.01% (1kHz)
• Signal to Noise Ratio: 105dB (1kHz)
• Dynamic Range: 90dB
• Channel Separation: 85dB
• MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decoder: Compliant with Windows Media Audio
• AAC Decoder: AAC-LC".aac" Files only

USB Specifications

• USB Version compatibility: USB 1.1/2.0 full speed
• File System: FAT 32/16/12
• Maximum Supply current: 1500mA
• D/A Converter: 24bit
• MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode: Compliant with Windows Media Audio
• AAC Decode: AAC-LC "aac" Files only
• WAV Decode: Linear - PCM Files
• flac Decode: FLAC files up to 48kHz/24bit

Audio Specifications

• Maximum Power: 50W x 4
• Output Power (DIN45324,+B=14.4v): 22W x 4
• Preout Level: 2500mV / 10kOhm,
• Preout Impedance: ≤ 600Ohm
• Speaker Impedance: 4Ohm ~ 8Ohm
• AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
• AUX Maximum Input Voltage: 1000mV
• AUX Input Impedance: 30kOhm
• Graphical Equalizer: 13-Band
• G. EQ. Frequency (Hz): 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
• G. EQ. Gain (dB): +/- 9dB
• Subwoofer Level (dB): -15 dB to +15dB

Bluetooth specifications

• Technology: Bluetooth V3.0
• Frequency: 2.402 - 2.48 GHz
• Output power: +4dBm(max), 0dBm (AVE) power class 2
• Maximum range: Line of sight approx. 10 meter
• Handsfree profile (HFP), V1.6
• Serial port profile (SPP)
• Advanced audio distribution profile (A2DP)
• Audio Codec: SBC/AAC
• Audio/Video remote control profile (AVRCP), V1,5
• Phonebook access profile (PBAP)

Accessories

• Release keys: 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord (Mitsumi to ISO): 15 cm
• Handsfree Microphone: with 2.5 m cable

General Specifications

• Operating voltage: 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption: 10A
• Dimensions (WxHxD): 182 x 53 x 158mm
• Weight, inclu. sleeve & escutcheon: 1.3 kg
• Operation Temperature Range: -10°C ~ 60°C
