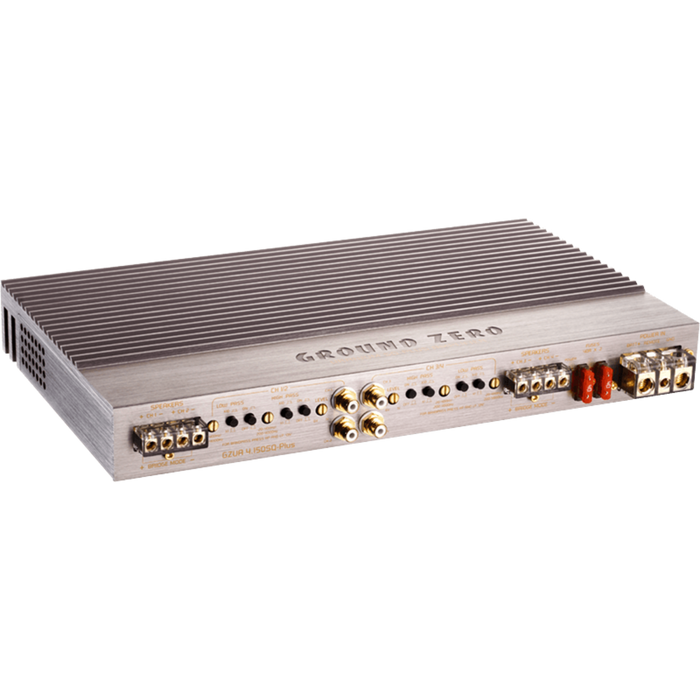

GZUA 4.150SQ-PLUS
€650,00
SKU
GZUA 4.150SQ-Plus 4-channel Sound Quality amplifier
| Features |
- 2 Ohm stable stereo
- Adjustable BIAS control (for each pair of channels separately)
- High End WIMA® Capacitors
- Latest BURR-BROWN® operational amplifiers
- Status LED
- Wide-band adjustable high pass & low pass filters
- Band-pass feature with activated LPF & HPF
- Adjustable input sensitivity
- Soft delayed remote turn on
- Thermal / speaker short circuit / overload / over current protection
- Temperature sensor controlled cooling fan
| Technical data |
*The WRMS output power is based on the CEA Standard CEA-2006-A ( 14.4V, 1% THD)
Model
GZUA 4.150SQ-PLUS
Type
4 Channel fullrange class A/B
Output Power @ 4 Ohm (CEA*)
4 x 110 W
Output Power @ 2 Ohm (CEA*)
4 x 190 W
Output Power @ 1 Ohm (CEA*)
-
Bridge mode @ 4 Ohm (CEA* / 10% THD)
2 x 460 W
Bridge mode @ 2 Ohm (CEA* / 10% THD)
-
Output power linkmode 2 Ohm
-
24 Volt Unit
-
18 Volt stable
-
Lowpass
20 - 400 Hz / 200 Hz - 4000 Hz (x10)
Highpass
20 - 400 Hz / 200 Hz - 4000 Hz (x10)
Bandpass
20 - 4000 Hz
Subsonic
-
Bassboost
-
Phaseshift
-
Adjustable Q-factor
-
Variable Bias Setting
Yes / Yes
Bass remote
-
High Level in
-
Line Out
-
Illumination
-
Dimensions cm / Inch
20.9 x 4.6 x 36.0 cm / 8.23“ x 1.81“ x 14.17
