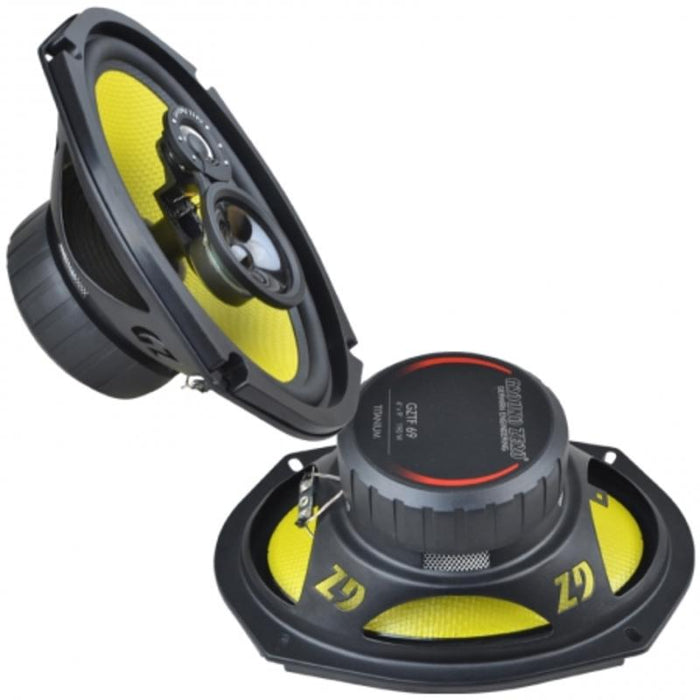

GZTF 69
€110,00
SKU
- High quality coax speaker with HQPP-Structure cone - Resonance free steel basket - Efficient 3 Ohm voice coil - 0.51” Mylar-tweeter with overload protection - 2.17” Mylar-midrange with overload protection
| Features |
- High quality coax speaker with HQPP-Structure cone
- Resonance free steel basket
- Efficient 3 Ohm voice coil
- 0.51” Mylar-tweeter with overload protection
- 2.17” Mylar-midrange with overload protection
| Technical data |
Model
GZTF 69
Type
3 Wege Koaxial / 3 Way coax
Diameter of midwoofer or midrange
150 x 230 mm 6“ x 9“
Mounting diameter of midwoofer or midrange
214 mm x 152 mm / 8.4” x 5.98”
Mounting depth of midwoofer or midrange
85 mm / 3.35”
Voice coil of midwoofer or midrange
25 mm / 1"
Cone of midwoofer or midrange
HQPP
Dustcap / Phaseplug of midwoofer or midrange
-
Basket of midwoofer or midrange
Stahl / Steel
Magnet of midwoofer or midrange
Ferrit
Diameter of tweeter
-
Mounting diameter of tweeter
-
Mounting depth of tweeter
-
Voice coil of tweeter
13 mm / 0.51"
Cone of tweeter
Mylar
Housing of tweeter
ABS
Magnet of tweeter
Neodym
Power handling WRMS
130 W
Power handling W peak
190 W
Impedance
3 Ohm
SPL
92 dB
Frequency response
40Hz-22Khz
