GZTA 5120X-II
€300,00
SKU

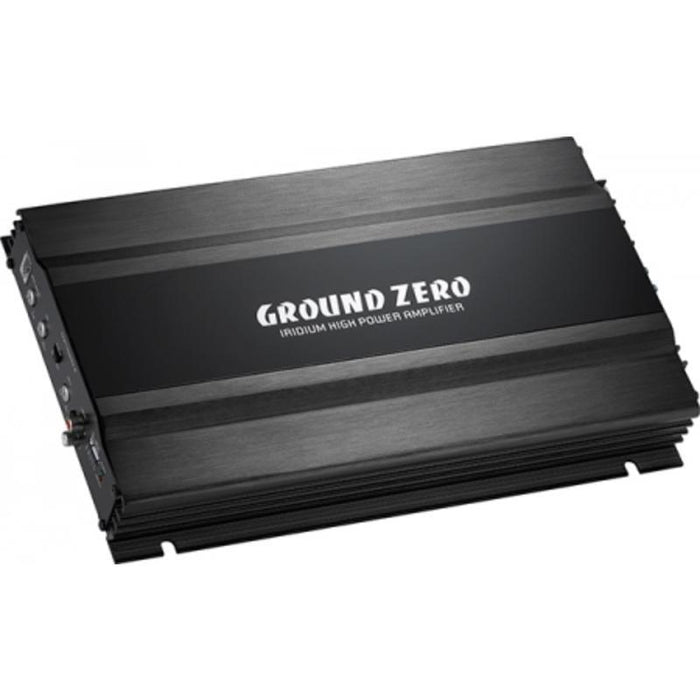

Amplifier 4X50 and 1X180RMS
| Features |
- Massive alu cast heatsink with hairline finish
- Capsuled and shortage-safe speaker and power terminals
| Technical data |
*The WRMS output power is based on the CEA Standard CEA-2006-A ( 14.4V, 1% THD)
Model
GZTA 5120X-B
Type
5 Ch Class AB
Output Power @ 4 Ohm (CEA*)
4 x 50 & 1 x 180 W
Output Power @ 2 Ohm (CEA*)
4 x 70 & 1 x 260 W
Output Power @ 1 Ohm (CEA*)
-
Bridge mode @ 4 Ohm (CEA* / 10% THD)
Ch 1-4: 2 x 170 W
Bridge mode @ 2 Ohm (CEA* / 10% THD)
-
Output power linkmode 2 Ohm
-
24 Volt Unit
-
18 Volt stable
-
Lowpass
40 - 4000 Hz (Ch 1-4) & 40 - 250 Hz (Ch 5)
Highpass
40 - 4000 Hz (Ch 1-4)
Bandpass
10 - 250 Hz (Ch 5)
Subsonic
10 - 50 Hz (Ch 5)
Bassboost
-
Phaseshift
-
Adjustable Q-factor
-
Variable Bias Setting
-
Bass remote
Inklusive / Inclusive (Ch 5)
High Level in
-
Line Out
-
Illumination
-
Dimensions cm / Inch
47,5 x 4,9 x 23 cm / 18.7“ x 1.93“ x 9.06
