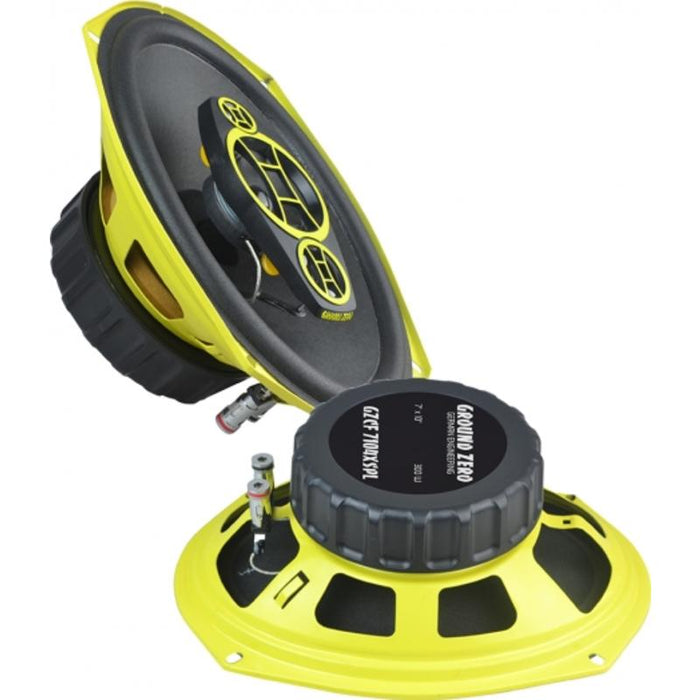

GZCF 7104XSPL
€150,00
SKU
- High power 4-Way coaxial speaker - Resonance free steel basket - Push terminal - Fiber reinforced water repellent paper cone - 0.51” PEI tweeter with overload protection - 2” paper cone dipole midrange with overload protection - 0.51” piezoelectric super tweeter - Grill incl. 6 x 9” adapter frame
Features |
- High power 4-Way coaxial speaker
- Resonance free steel basket
- Push terminal
- Fiber reinforced water repellent paper cone
- 0.51” PEI tweeter with overload protection
- 2” paper cone dipole midrange with overload protection
- 0.51” piezoelectric super tweeter
- Grill incl. 6 x 9” adapter frame
Technical data |
Model
GZCF 7104XSPL
Type
4 Wege Koaxial / 4 Way Coax
Diameter of midwoofer or midrange
253 x 180 mm / 9.96" x 7.09"
Mounting diameter of midwoofer or midrange
238,5 x 165 mm / 9.39" x 6.5"
Mounting depth of midwoofer or midrange
86 mm / 3.39"
Voice coil of midwoofer or midrange
38 mm / 1.5"
Cone of midwoofer or midrange
Water repellent paper
Dustcap / Phaseplug of midwoofer or midrange
-
Basket of midwoofer or midrange
Stahl / Steel
Magnet of midwoofer or midrange
Ferrit
Diameter of tweeter
50 mm / 2" (MID), 13 mm / 0.51" (TW), 13 mm / 0.51" (PIEZO)
Mounting diameter of tweeter
-
Mounting depth of tweeter
-
Voice coil of tweeter
14 mm / 0.55" (MID), 13 mm / 0.51" (TW), PIEZO
Cone of tweeter
Water repellent paper (MID), PEI Softdome (TW & PIEZO)
Housing of tweeter
Steel (ventilated) (MID), Plastic injection (TW & PIEZO)
Magnet of tweeter
Ferrit (MID), Neodym (TW), Piezoelectric (Supertweeter)
Power handling WRMS
200 W
Power handling W peak
300 W
Impedance
4 Ohm
SPL
93 dB
Frequency response
35 Hz - 25 KHz
