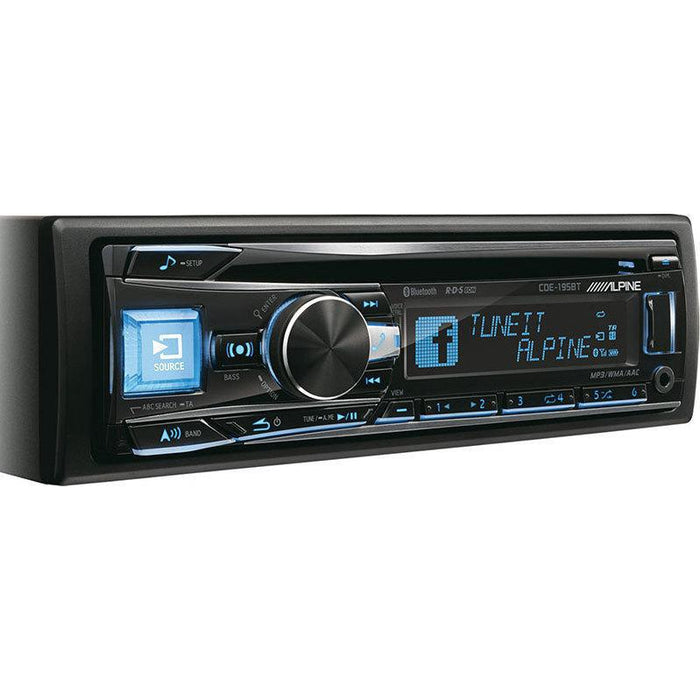

ALPINE CDE-195BT

€239,00
SKU

Specifications

Tuner

  • Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
  • Memory: Auto Memory
  • Seek Mode: Local/DX Selection

RDS

  • RDS Functions: TA, TP, AF,CT, PTY, EON, Radio Text+
  • PTY (Programme Type) Display

BLUETOOTH®

  • Built-in BLUETOOTH® Module
  • Hands Free Calling: HFP (Hands Free Profile)
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  • Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
  • BT Plus Advanced BLUETOOTH Technology
  • Connection: SSP (Secure Simple Pairing) Supported
  • Phone Book: Phone Book Synchronization
  • Phone Book Search: 3 Letters Alphabet Search
  • Shortcut Dialling: 6 Presets Memory
  • Phone Registration: up to 5 Phones can be registered
  • Multiple Phone Number Registration: 5 Phone Number Registration Possibility
  • Phone Book Label Display: Telephone Type Display (General, Mobile, Home, Office, Other)
  • Voice Dial Operation: Voice Control for iPhone Supported
  • Auto Answer
  • Call Waiting
  • Call History Display: Phone Book Call/Dialled call/Received call/Missed call
  • Speech Volume Level Adjustment: Adjustable for Outgoing and Incoming Volume
  • Hands-Free Phone Sound Setting: 5 Type Selection
  • Signal Strength Indicator
  • Battery Level Indicator
  • Output Speaker Selection
  • Menu Language Selection: English, German, French, Italian, Spanish, Dutch, Russian
  • Firmware Updatable
  • Microphone Included

Made for iPod® / iPhone®

  • Compatibility for iPod/iPhone: Made for iPod touch 5G/4G/3G/2G/1G, iPod nano 7G/6G/5G/4G/3G, iPod classic 160GB/120GB/80GB, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
  • Connection: KCU-445i Required (for iPods / iPhones with 30-pin connector)
  • Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook, Genius Mix
  • Alphabet Search
  • Percentage Search
  • App Direct Mode
  • Direct Up/Down: Playlist, Artist, Album, Genre, Composer, Episode Up/Down
  • M.I.X. (Shuffle) Play: Song, Album, All
  • Repeat one
  • Battery Charging
  • iPhone: Automatic initial Bluetooth setup via USB

TuneIt

  • TuneIt App Ready with iPhone and Android
  • Sound Setting Function
  • Sound Setting Data Upload to TuneIt Cloud Server (Data Sharing)
  • Facebook Notification
  • Compatible for iPhone and Android Smartphones: Available on Apple App Store and Google Play Store

Disc Player

  • Disc Type: CD Player
  • Disc Playback Type: CD, CD-R/RW
  • Music Playback: CDDA, MP3, WMA, AAC Playback
  • M.I.X. Random Play: Track/Folder, All
  • Repeat
  • Playback Control: Play/Pause/Forward/Backward
  • CD Text Display: Disc/ Track display
  • CD Text Name Search
  • Percentage Search
  • DAC: 24 bit DAC
  • Zero data Mute
  • Digital Servo

USB Media Connection

  • Front USB Connection
  • Music Playback: MP3, WMA, AAC File Playback
  • USB Class: Mass Storage Class
  • File/Folder Name Search
  • Folder Up/Down
  • M.I.X. Random Play: Folder, All
  • Repeat

Sound Tuning

  • Subwoofer Level Adjustment
  • Bass Engine
  • BASS ENGINE SQ
  • Subwoofer Phase Select: 0°/ 180°
  • Subwoofer System Select
  • Default Equalizer setup
  • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
  • 9-band Parametric Equalizer
  • Digital Time Correction
  • Digital Crossover Setting: 2Way / 3Way System
  • Application Volume Level Setting
  • MediaXpander
  • Power IC Management System
  • TuneIt ready

General

  • Power Output: 4 x 50W High Power Amplifier with Advanced Power IC
  • Display: 14 Segments RGB LCD Display, 2 Lines
  • Control Type: Rotary Encoder Knob
  • Face Color: Black
  • Illumination Buttons: Variable RGB Illumination Buttons
  • Display Colour Setting: Variable RGB Color Display
  • Display and button illumination independently selectable
  • High Grade Audiophile Design
  • 3 PreOuts (2V, Front + Rear + Subwoofer)
  • DAC: 24-bit DAC
  • AUX-In: Front AUX Input (3.5mm mini jack)
  • Steering Wheel Remote Control Ready: Direct connection
  • Mute: -20dB Mute (Remote control only)
  • Remote Control Ready
  • Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
  • Clock
  • Firmware Updatable: via USB
  • Detachable DIN Trim Plate
  • Detachable Face Plate
  • Dimmer
  • Power Antenna Lead
  • Remote Turn-On
  • Start-Stop Engine unaffected
  • Voice Control (SIRI activation)

SPECIFICATIONS

Max Power Output Ratings

  • Max Power Output: 4 x 50W

FM Tuner

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 0.7 μV
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW Tuner

  • Tuning Range: 531 - 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB

LW Tuner

  • Tuning Range: 153k - 281k Hz
  • Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB

Disc Player

  • Frequency Response: 5 - 20k Hz (±1 dB)
  • Total Harmonic Distortion (at 1kHz): 0.008 %
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation (at 1kHz): 85 dB
  • Wow & Flutter (%WRMS): B.M.L.

USB

  • USB Requirements: USB 1.1/2.0
  • Max. Power Consumption: 1,000 mA
  • USB Class: Mass Storage Class
  • File System: FAT 12/16/32
  • MP3 Decoding: MPEG Audio Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: AAC-LC Format ′′.m4a′′ File
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
  • Total Harmonic Distortion (at 1kHz): 0.008 %
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation (at 1kHz): 85 dB


BLUETOOTH®

  • BLUETOOTH® Version : Bluetooth v2.1 + EDR
  • Output Power: +4 dBm Max. (Power Class 2)
  • HFP (Hands Free Profile)
  • HSP (Head Set Profile)
  • A2DP: Advanced Audio Distribution Profile
  • AVRCP: Audio/Video Remote Control Profile v1.4
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • SPP (Secure Simple Pairing)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to 15
  • Subwoofer Phase Setting: 0° or 180°
  • BASS ENGINE SQ: Level 0 - 6
  • Bass Level Control Range: ±9.1 dB at 100Hz
  • Treble Level Control Range: ±9.1 dB at 10kHz
  • Parametric Equalizer (Band 1): 20 - 100 Hz
  • Parametric Equalizer (Band 2): 63 - 315 Hz
  • Parametric Equalizer (Band 3): 125 - 500 Hz
  • Parametric Equalizer (Band 4): 250 - 1k Hz
  • Parametric Equalizer (Band 5): 500 - 2k Hz
  • Parametric Equalizer (Band 6): 1k - 4k Hz
  • Parametric Equalizer (Band 7): 2k - 7.2k Hz
  • Parametric Equalizer (Band 8): 5.8k - 12k Hz
  • Parametric Equalizer (Band 9): 9k - 20k Hz
  • Parametric Equalizer (Gain): -7 to 7
  • Parametric Equalizer (Bandwidth): 3, 4, 5
  • 2Way Crossove Mode: Cut-off Frequency 20-200Hz, Slope Flat/6/12/18/24 dB/oct, Level -12 to 0dB
  • 3Way Crossover Mode: Cut-off Frequency Low/Mid Low 20-800Hz Mid High 20-20kHz High 1k-20kHz, Slope Flat/6/12 dB/oct, Level -12 to 0dB
  • Application Volume Level Setting: ±14 dB

General

  • Power Requirement: 14.4 V.DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 2V / 10k ohms
  • Aux In: 1.4V / 10k ohms
  • Operating Temperature (°C): 60 °C (140 °F) to -10 °C (14 °F)
  • Maximum Mounting Angle: 35°
  • Weight: 1.4kg

Dimensions

  • Din Size: 1 DIN
  • Chassis Size (W x H x D) mm: 178 x 50 x 164.7 mm
  • Nose Piece Size (W x H x D) mm: 169.8 x 45.8 x 24 mm
